Inovelli Bypass
| Phase 1 Structure Design |
Phase 2 Software Development |
| Phase 3 Tooling |
Phase 4 Beta Testing |
| Phase 5 Certifications |
Phase 6 Mass Production |
| Phase 7 Shipping to Inovelli HQ |
Phase 8 Shipping to Customers |
During the Structure and Hardware Design phase, the engineering team will review the Project Request Document (PRD) to align requirements with feasibility. Once finalized, they will provide an AutoCAD model for approval. This takes around 6-8 weeks.
Product details
Features
- Eliminates (in most cases) bulb flickering at low levels in neutral and non-neutral setups
- Required with your non-neutral compatible Inovelli switch for non-neutral installations
- Miniature size (about the size of a US quarter stacked six high) makes it easy to install at the light fixture
Specs
- Power: 120-240V AC, 50/60Hz
- Product Dimensions: 0.98" (25 mm) x 0.75" (19 mm) x 0.39" (10 mm)
- Operating Temperature Range: 32-104° F (0-40° C)
- Operating Humidity Range: 8% - 80% RH
Included in the Box
1x Bypass
1x Instruction Manual
Install this in a neutral setting to minimize or eliminate flickering or install it in a non-neutral setting to help power your Inovelli non-neutral compatible switch (and minimize/eliminate flickering)

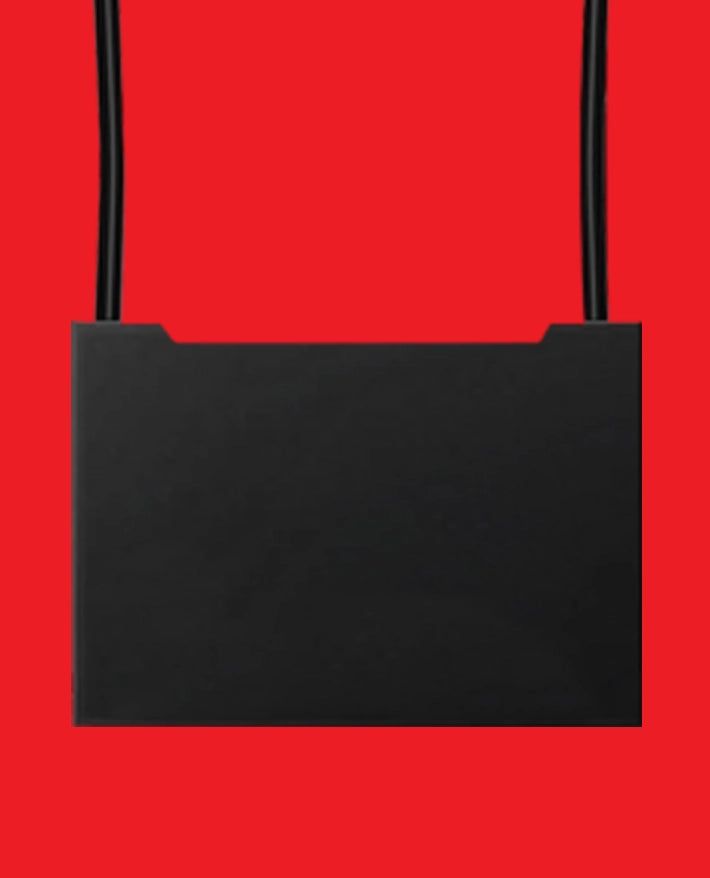

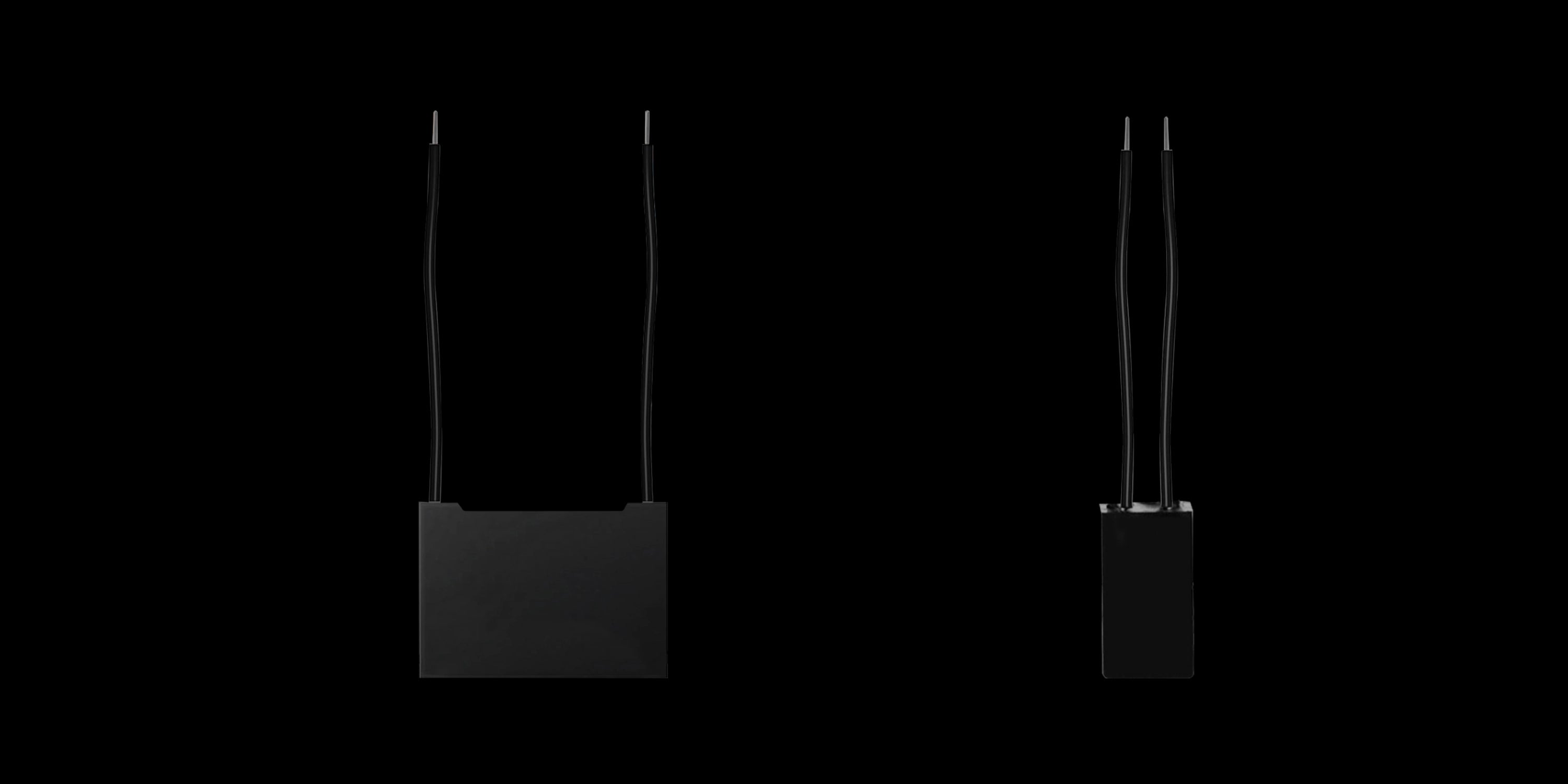

The bypass is about the size of a US quarter (or 1mm larger then the Canadian quarter) stacked 6 deep.
L = 0.98" (25 mm) x H = 0.75" (19 mm) x D = 0.39" (10 mm)
The bypass is designed to work with both on/off and dimmable CFL & LED Bulbs.
The Perfect Compliment to your Inovelli Switch
Whether you have a neutral or non-neutral setup, this bypass is the perfect companion.
While it's rare your Inovelli smart switch won't work properly in a neutral setup, if you experience flickering, a bypass will likely solve your issue.
In a non-neutral setup, the bypass not only stops/minimizes flickering, it actually helps make sure your Inovelli switch is powered properly as the electronics inside the switch require a small amount of power.
